Form meets function.
A sculptural membrane tensioned around a central column. Distinctive geometry that elevates gathering spaces, resorts, and campus landmarks with dramatic height and natural rainwater drainage.
ARCHITECTURAL STUDY FORM 01
DETAIL 01.BAn elevated apex gives the membrane its unmistakable silhouette. A clear perimeter keeps the landscape open and welcoming while channeling monsoon rainwater through a centralized drainage funnel.
Centered on high-precision machined compression rings, radial tension cables suspend the membrane into double-curved hyperbolic cones with zero flat spots.
Every installation is custom-designed around site topography, wind fetch, and soil bearing capacity. Final specifications are confirmed during non-linear FEA analysis.
Clear Span
Membrane Fabric
Steel Framework
Wind Resistance
Rainwater Drainage
Ideal Deployment
BUILT, NOT JUST IMAGINED

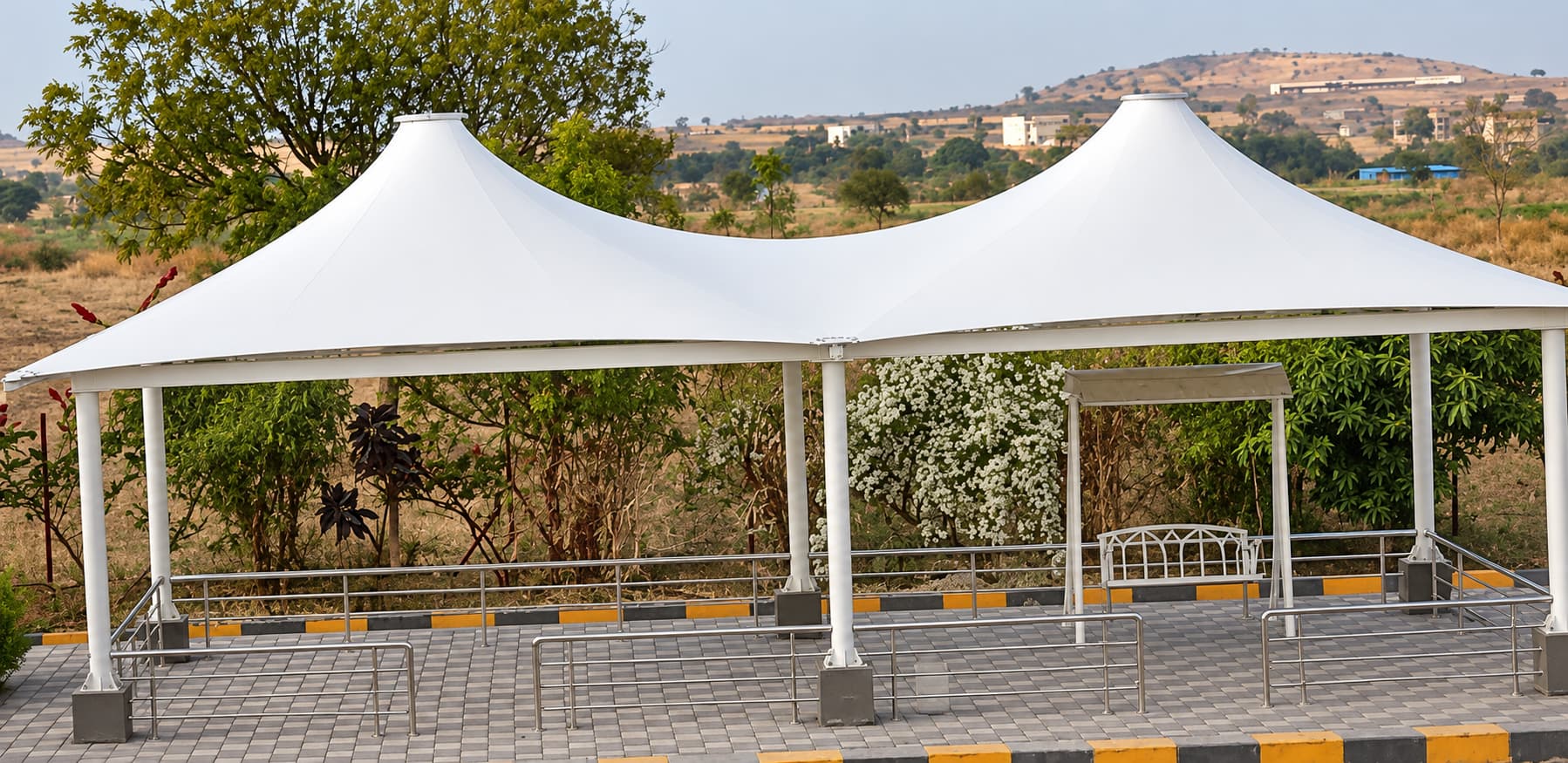

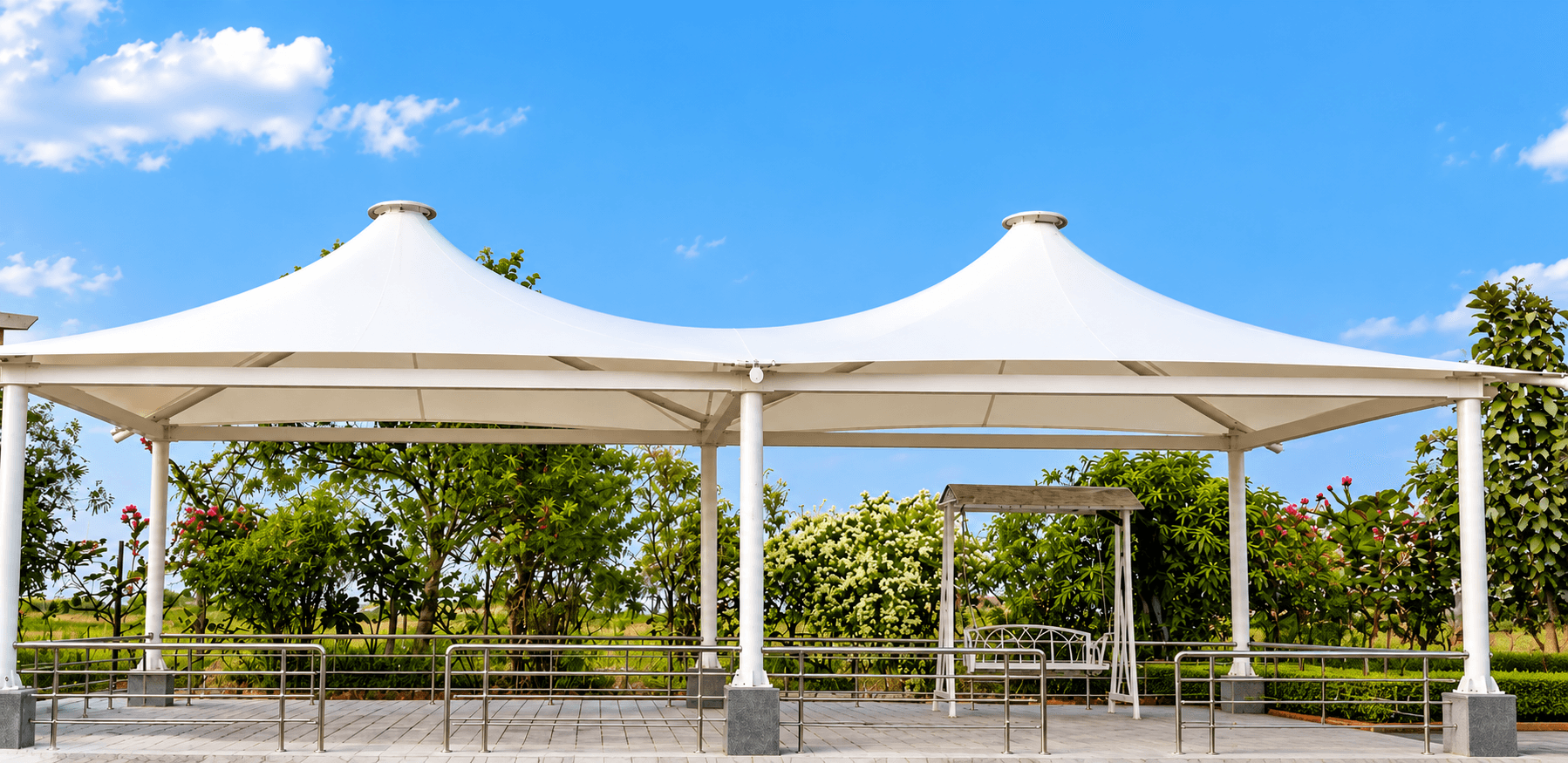

01 / IN THE REAL WORLDBaner, Pune

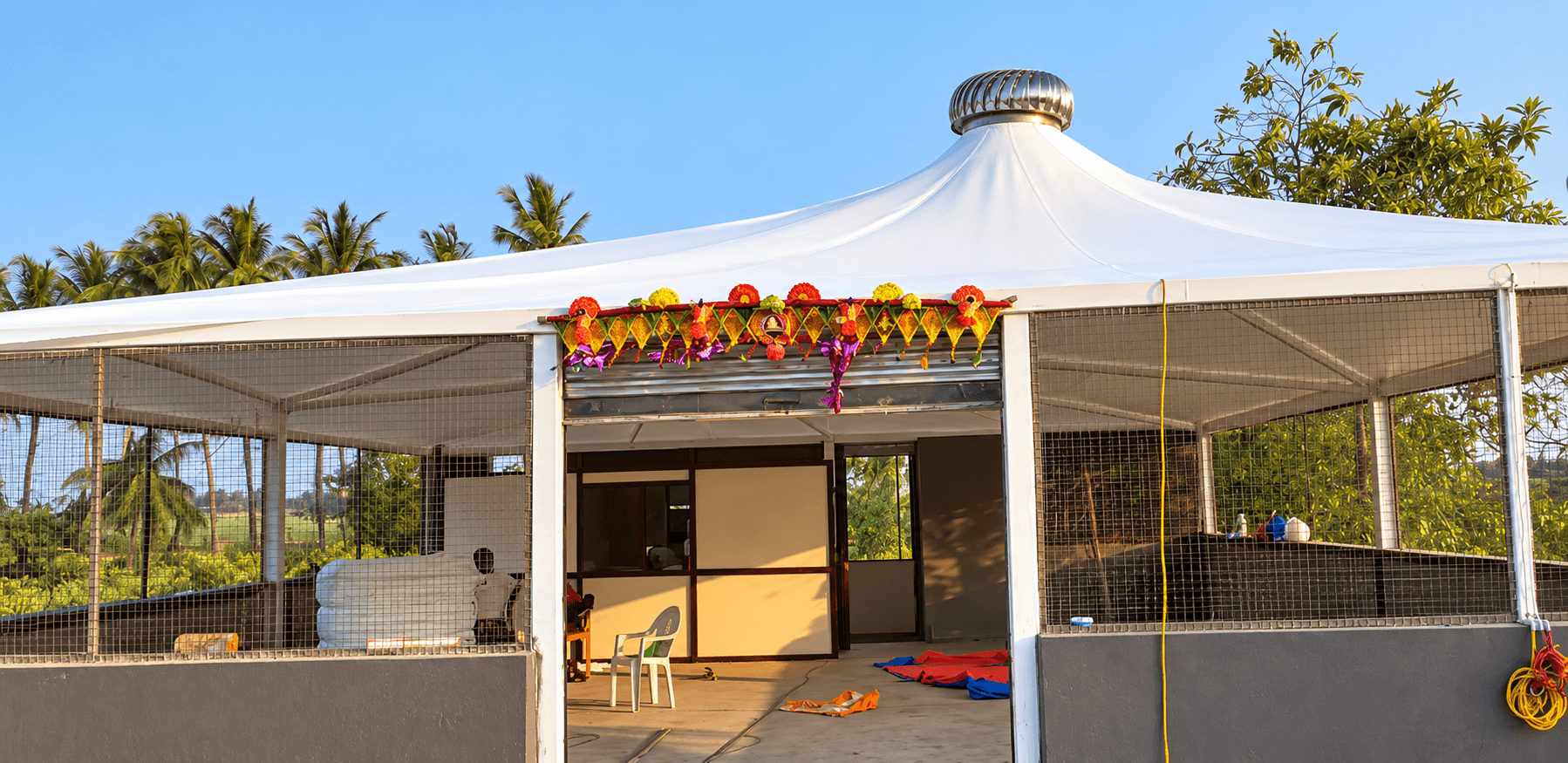

02 / IN THE REAL WORLDShemnewadi, Kolhapur Highway
03 / IN THE REAL WORLDKhadakwasla, Pune
Explore the uses below to develop a brief for your site. Compare access, activities and the area to be covered before discussing the appropriate form with our team.
Explore shelter for outdoor dining and guest gathering areas.
Consider an individual focal point within a landscaped setting.
Compare peaked shelters for event lawns and seating layouts.
Plan the relationship between shelter, paths and open space.
Bring us your site dimensions, architectural intent, or functional challenge. Our Pune engineering team provides comprehensive 3D modeling and turnkey execution.
PLAN AROUND YOUR SITE
Compare the membrane geometry, column positions and clear space beneath the roof with your intended application. A structural form should be selected alongside the actual site layout.
Share the location, approximate dimensions, photographs and any available drawings. Identify existing foundations, drainage routes, utilities and access restrictions before a proposal is developed.
Material selection depends on daylight preferences, exposure, appearance, cleaning access and the proposed structure. Ask which membrane and finish options are suitable for your site, and request the applicable product documentation.
Confirm drainage, edge details, support connections and the interface with nearby buildings as part of the project scope.
Covered area alone does not define the quotation. Geometry, support steelwork, foundations, material choice, transport, lifting access and site preparation all affect the scope.
Ask for an itemised proposal and a project-specific programme covering design approval, fabrication, site readiness and installation. Agree any exclusions before work begins.
Discuss inspection access, drainage checks and a cleaning method suited to the selected membrane. Request handover documentation and written maintenance guidance for the installed system.
Confirm any applicable warranty, its conditions and the responsibilities for routine inspections in the project agreement.
