More room below.
An anchored structural marvel extending outward with zero forward columns. Maximizes usable ground area, enabling unobstructed vehicle parking, effortless turning radius, and clean architectural lines.
ARCHITECTURAL STUDY FORM 04
DETAIL 04.BSupport moves entirely to the perimeter edge. The ground below stays completely open for vehicles, people, and uninterrupted architectural vistas.
Deep chemically anchored base plates and high-tensile Grade 316 rear tie-back rigging enable forward overhang reaches up to 12 meters with zero forward posts.
Every installation is custom-designed around site topography, wind fetch, and soil bearing capacity. Final specifications are confirmed during non-linear FEA analysis.
Clear Overhang
Membrane Fabric
Steel Framework
Wind Resistance
Rainwater Drainage
Ideal Deployment
BUILT, NOT JUST IMAGINED

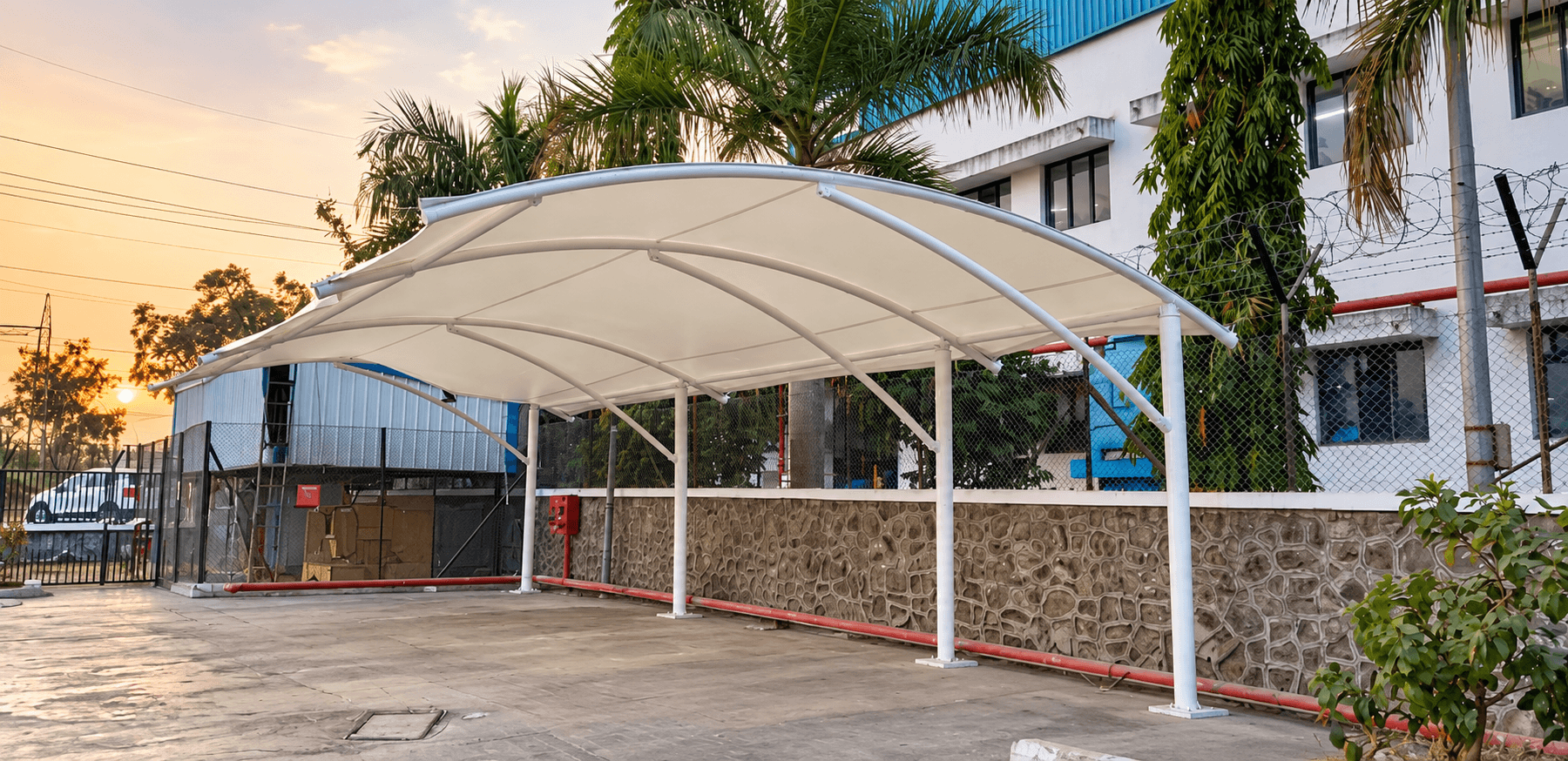

01 / IN THE REAL WORLDChakan, Pune

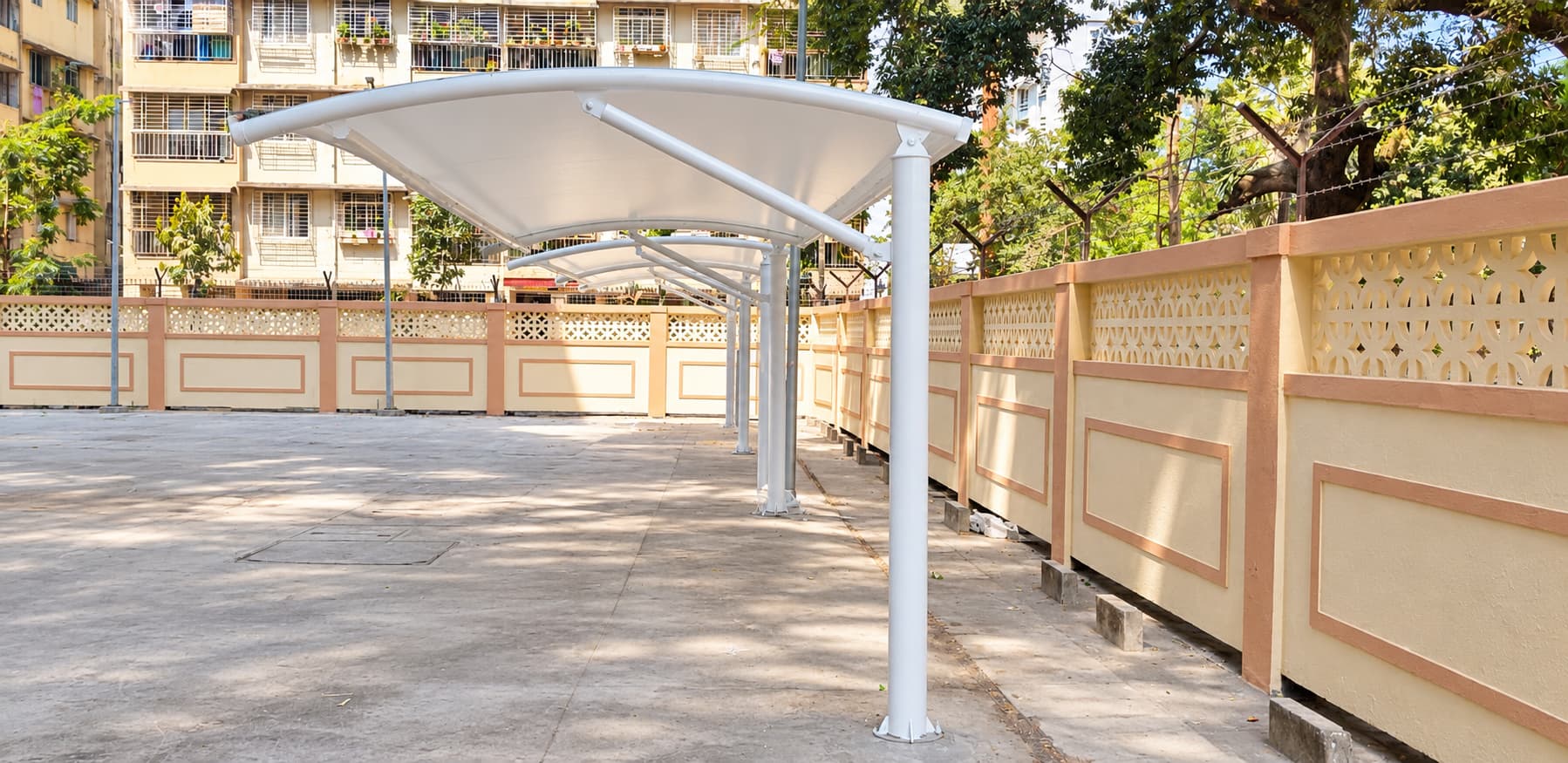

02 / IN THE REAL WORLDPune

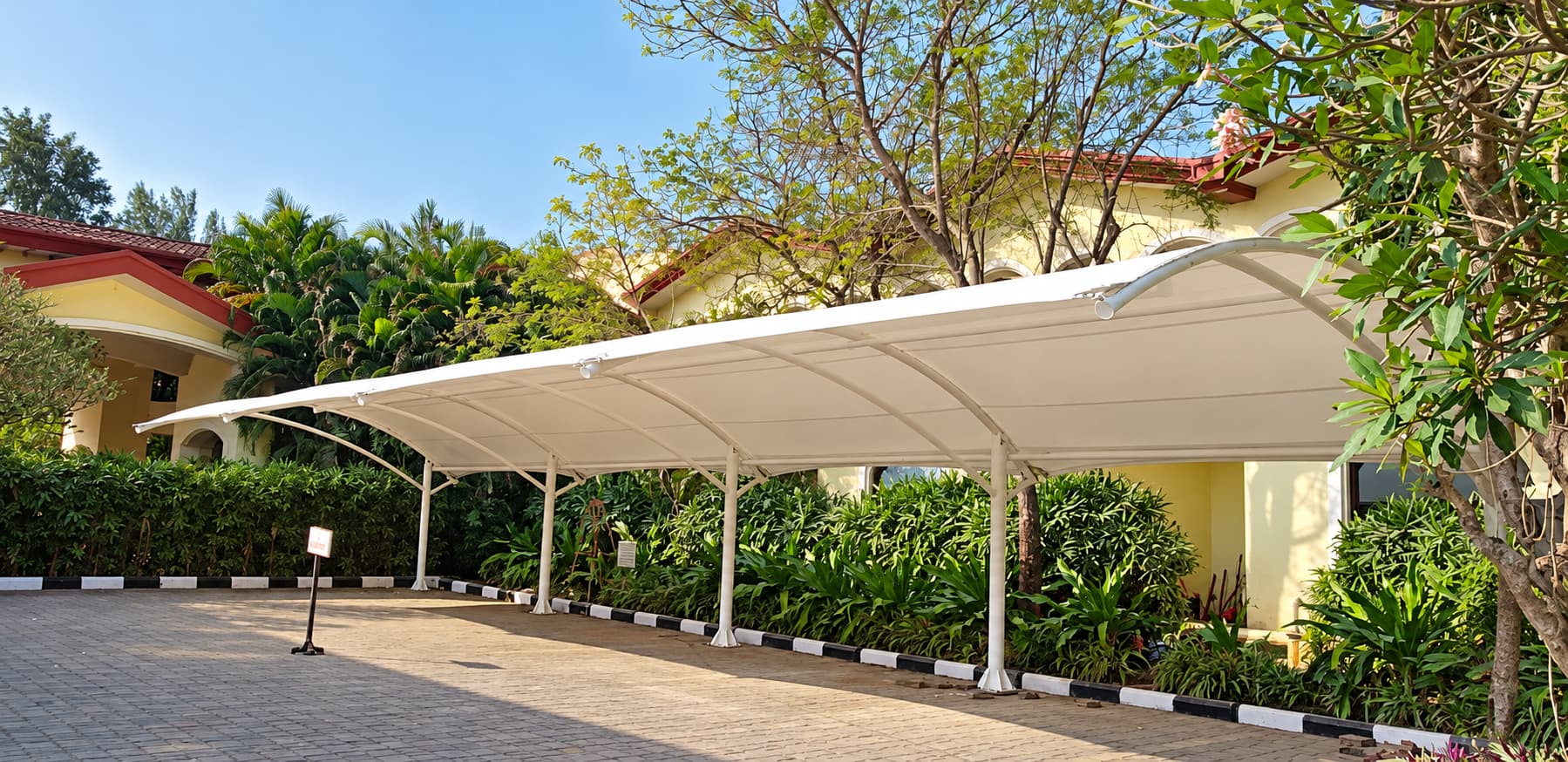

03 / IN THE REAL WORLDKudal (Konkan) & Paithan
Explore the uses below to develop a brief for your site. Compare access, activities and the area to be covered before discussing the appropriate form with our team.
Review support locations alongside bays and turning space.
Compare entrance shelter with pedestrian and vehicle access.
Discuss clearances and circulation at the site entrance.
Consider the guest arrival area within a wider hospitality plan.
Bring us your site dimensions, architectural intent, or functional challenge. Our Pune engineering team provides comprehensive 3D modeling and turnkey execution.
PLAN AROUND YOUR SITE
Compare the membrane geometry, column positions and clear space beneath the roof with your intended application. A structural form should be selected alongside the actual site layout.
Share the location, approximate dimensions, photographs and any available drawings. Identify existing foundations, drainage routes, utilities and access restrictions before a proposal is developed.
Material selection depends on daylight preferences, exposure, appearance, cleaning access and the proposed structure. Ask which membrane and finish options are suitable for your site, and request the applicable product documentation.
Confirm drainage, edge details, support connections and the interface with nearby buildings as part of the project scope.
Covered area alone does not define the quotation. Geometry, support steelwork, foundations, material choice, transport, lifting access and site preparation all affect the scope.
Ask for an itemised proposal and a project-specific programme covering design approval, fabrication, site readiness and installation. Agree any exclusions before work begins.
Discuss inspection access, drainage checks and a cleaning method suited to the selected membrane. Request handover documentation and written maintenance guidance for the installed system.
Confirm any applicable warranty, its conditions and the responsibilities for routine inspections in the project agreement.
